Encryption / Decryption

Notepad3 cherry picked the encryption feature, which has been implemented by Dave Dyer. He paste it into Flo Balmer’s original Notepad2 code (Version 4.2.25). The following end user documentation has been assembled from Dave Dyer’s original online documentation and the offline documentation distributed with NotepadCrypt binaries.

Requirements

Notepad3 is a simple text editor which can optionally encrypt the text files it edits. It was designed to fill a requirement to encrypt configuration files which had to be edited by humans but read by programs, without the hazard that would obviously exist if editing required the human editor to make a temporary unencrypted file.  It is an editor which could read and write an encrypted file, for which the encrypted format was documented and assessable to C and Perl programs.

The encryption / decryption feature was constructed using open source software, including a low level implementation of AES encryption and Sha256 hashing. None of this software had to be changed in any substantial way, but the file format and key management had to be designed and implemented to stitch it all together.

The requirement that a program be able to read the encrypted file led to a design which included a master key, which is extremely useful to anyone using Notepad3 to encrypt their own confidential files.

Source Code

Sha256 hashing implementation (used to convert passphrases to encryption keys) based on an implementation by Christoper Devine. This file is available from many sources on the web. AES encryption, for which there are many open source implementations.

np3encrypt.exe Command line tool

The Notepad3 distribution contains a simple command line tool (np3encrypt.exe) which uses the same file format.You may use it to bulk encrypt/decrypt text files stored in a directory, using a batch file (be careful with the clear text passphrase). Notepad3 can open these files, if the passphrase is known.

np3encrypt Usage

np3encrypt.exe {ef em df dm} source destination {passphrase} {passphrase}

  • ef – encrypt with filekey
  • em – encrypt with masterkey
  • df – decrypt with filekey
  • dm – decrypt with masterkey

Notepad3’s Encryption / Decryption Feature

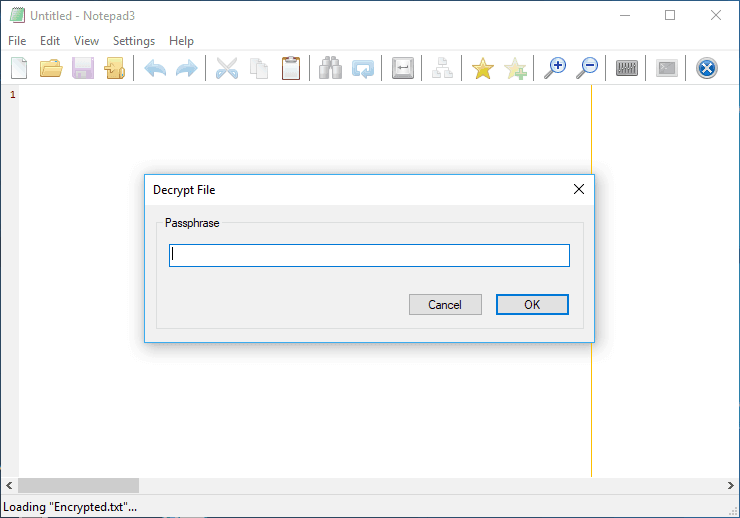

If you open a file which was encrypted in Notepad3, you’ll be prompted to supply a passphrase. This passphrase becomes the default to be used when saving files. The passphrase is not the
actual encryption key, but is used to generate a 256 bit encryption key called the file key.

Notepad3 Encryption / Decryption Feature

Notepad3 Encryption / Decryption Feature

Master Keys

An Encrypted file can optionally contain a copy of its own file key, encrypted with a master key, derived from a master passphrase. This allows anyone who knows the master passphrase to decode
any file encrypted with any file key which uses this master key structure. As long as the file passphrase is not changed, the master key can be propagated to new versions of the file without typing the master phrase again.

Why use a master key?

1. Data Recovery:

It is not generally a good idea to use the same passphrase for all files, or to continue using the same passphrase forever. The principle hazard is that if even one key is revealed, every encrypted file you have ever created can also be read. Consequently, different keys should be used for different files, and over time, those keys should change. Since the keys change, they are subject to being lost or forgotten, resulting in lost data – it’s still there, but no one can decode it. If you use a master key, and you have misplaced the file key, you can still recover your data. Since master key is not routinely used to decrypt the file, and never needs to be shared with anyone, is is much less likely to be compromised, so it is reasonable for a good master key to be used for a very long time in a lot of different files.

Recommendation:

Use a master passphrase that will be very hard for anyone to guess and very hard for you to forget. For example: “My favorite movie is Gone with the Wind” or “When it rains in new York, even Chicago is a better place to be”. Never tell anyone what it is or write it down. It’s an EMERGENCY measure to prevent catastrophic data loss, so treat it that way. Never use it to read or open any encrypted file except for testing, or if you have really lost the file passphrase.

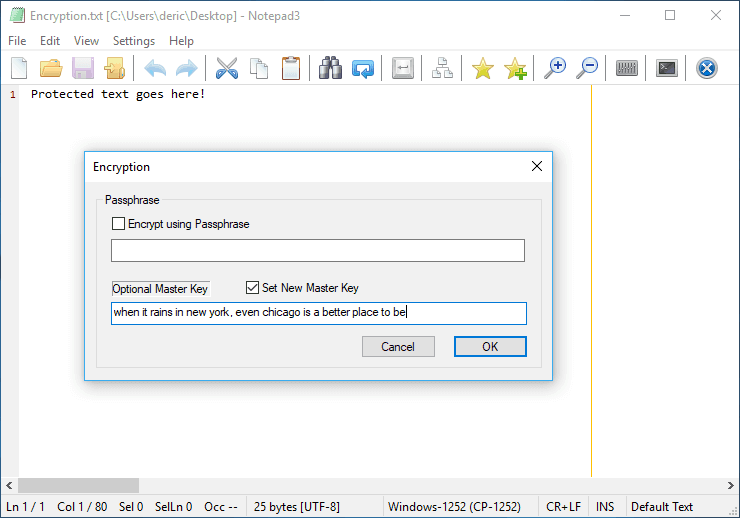

Notepad3 Encryption Master Key

2. Trapdoor Access

Sometimes it is desirable to allow a second party to decode the file without knowing the encryption passphrase – a good example is where an automated program is intended to read an encrypted
file that is prepared by a human. The program has to have the passphrase or the key embedded in it somewhere. It’s possible for a dedicated attacker to find it, but it’s much more likely that the source of compromise will be clumsy humans. Allowing the program to use the master key and humans to use the ordinary file keys will allow the routine-use keys to be changed as often as necessary, while still letting the program read the files without being told the new key.

A word about pass phrases and overall security

While this encryption scheme uses high quality AES encryption and quite long 256 bit keys, that is almost irrelevant to the overall security of the system. It’s like having a very expensive lock on your front door. Thieves won’t go to great lengths to pick your lock; they will simply break a window instead.

The weak link in this encryption scheme is YOU and your selection of pass phrases. If your encrypted files are compromised, the most likely, by far, method is the simplest; (1) they ask, you tell. or (2) they find the scrap of paper where you wrote the passphrase or (3) some key logger watches you type the passphrase. The only other likely method is a dictionary-type attack using a program to try lots of possible passphrases. Any short, word-like passphrase CAN be compromised using a few days of computer time.

Finally, consider the suitability of this encryption scheme for your purpose. If your goal is to prevent your wife from reading your girlfriend’s phone number in your address book: definitely. 🙂

  • If your goal is to prevent disclosure of sensitive data if your laptop is stolen: most likely.
  • If your goal is to prevent fishing by the IRS, should they ever become curious about you: don’t count on it. They’ll throw you in jail until you tell them the password, or install a key logger and wait for you to tell them voluntarily.
  • If your goal is to keep secrets people who are definitely out to get you, and are willing to shove bamboo splints under you fingernails until you talk: don’t even think about it.

Technical Details for Notepad3

Overall Design:

Sha256 hash is used to convert an ASCII pass phrase to a 256 bit encryption key. Pseudorandom data is used as an initialization vector for AES-256 encryption.

Optionally, a the encryption key (NOT the passphrase) is encrypted using a second master key, and included in the file header. This master key can be used as an emergency data recovery key, or as a second key to be used by programs to read encrypted files.

Overall File Format:

Consists of a preamble, the encrypted data, and some padding at the end. Encrypted files start with an 8 byte preamble, the first 4 bytes are a “magic number” to identify the file type (currently 0x04030201) and a 4 byte sub-file type, (currently either 0x00000001 or 0x00000002 if the file has a master key). The next 16 bytes of the preamble are the initialization vector for the AES engine, to be used with the file key. Each file gets a unique 16 bytes of pseudo random noise.

Next, for master keyed files, is a 16 byte IV for the master key, followed by a 32 byte block containing the file key, encrypted with the master key, using the master key IV and CBC block chaining. Next, is the actual file data, encrypted using the file key and the IV, and CBC block chaining. Finally, are 1-16 bytes of padding to round out the last AES block. Note that there are never 0 bytes of padding.

Passphrase Management:

256 bit encryption keys are generated from the ASCII passphrase by passing the passphrase through a SHA256 hash. The passphrase itself is never stored anywhere except in the dynamic memory of the encrypting program.

Key management over file generations:

If the file is opened using a file passphrase, the passphrase is retained and used as the default for the passphrase dialog. If the file is opened using a master passphrase, the recovered file key is used as the default encryption for new files. This allows an editor who does not know the file passphrase to propagate a file key he could not create.

If the file contains a master key, and neither the file or master passphrase is changed, then the retained, master-encrypted file key is copied into the next file generation (It is still valid). This allows an editor who knows only the file passphrase to propagate a master key he could not create.
